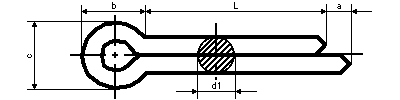

DIN 94 (ISO 1234)
Split Pins 开口销
){kind=link}
材质
C08 铜
镀别
蓝白锌
|
Dia.
|
1
|
1.2
|
1.6
|
2
|
2.5
|
3.2
|
4
|
5
|
6.3
|
8
|
10
|
13
|
|
|
d1
|
max
|
0.9
|
1
|
1.4
|
1.8
|
2.3
|
2.9
|
3.7
|
4.6
|
5.9
|
7.5
|
9.5
|
12.4
|
|
min
|
0.8
|
0.9
|
1.3
|
1.7
|
2.1
|
2.7
|
3.5
|
4.4
|
5.7
|
7.3
|
9.3
|
12.1
|
|
|
c
|
max
|
1.8
|
2
|
2.8
|
3.6
|
4.6
|
5.8
|
7.4
|
9.2
|
11.8
|
15
|
19
|
24.8
|
|
min
|
1.6
|
1.7
|
2.4
|
3.2
|
4
|
5.1
|
6.5
|
8
|
10.3
|
13.1
|
16.6
|
21.7
|
|
|
b
|
3
|
3
|
3.2
|
4
|
5
|
6.4
|
8
|
10
|
12.6
|
16
|
20
|
26
|
|
|
a
|
max
|
1.6
|
2.5
|
2.5
|
2.5
|
2.5
|
3.2
|
4
|
4
|
4
|
4
|
6.3
|
6.3
|
|
min
|
0.8
|
1.25
|
1.25
|
1.25
|
1.25
|
1.6
|
2
|
2
|
2
|
2
|
3.2
|
3.2
|
|
|
L
|
4-280
|
||||||||||||
